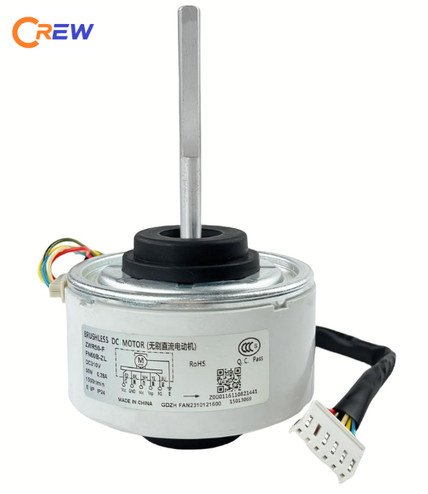

ZWR50F 50W DC310 FN60B-ZL

 Technical specifications:

• Mechanical type: Carbon Brushless DC Fan Motor (Brushless DC Fan Motor), intended for indoor units of air conditioners (splits).
• Operating voltage: 310V DC (DC 310V)It is the effort allocated to smart and energy-efficient systems.
• Electrical power: 50 watts (50W)It provides excellent torque to push huge amounts of air.
• Current intensity (ampere): Very low, about 0.28 A (0.28A) Which makes it highly energy efficient.
• Maximum rotation speed: reach 1500 دورة في الدقيقة (1500r/min).
• Approximate motor body dimensions: About 93mm by 145mm, it comes with a standard spindle diameter (Shaft) of 8mm and a length of 70mm.
• Mutual compatibility: This engine serves as an official and direct alternative to the code: ZWR50-F and FN60B-ZL and 150104060116 and DR-8838-807A.

 common use

• Air circulation and distribution inside the room: Its primary and only use is to rotate the wide squirrel fan (Cross Flow Fan) inside the indoor unit of the air conditioner; To draw hot air from the room and pass it through the cooling radiator (evaporator), then push it back after cooling and distribute it regularly.
• Intelligent Inverter (Inverter) technology support: Thanks to its direct current (DC) operation, the motor communicates precisely with the main control panel of the air conditioner to change its speed smoothly and gradually (Variable Frequency), to suit different operating modes such as Eco mode (ECO) or Sleep mode (Sleep Mode).
• Gree Air Conditioner Maintenance (Gree): A vital spare part used in maintenance centers to repair and reset modern Inverter air conditioners with a capacity of (9,000 to 24,000 thermal units in British BTU) belonging to Gree and its compatible agencies.
