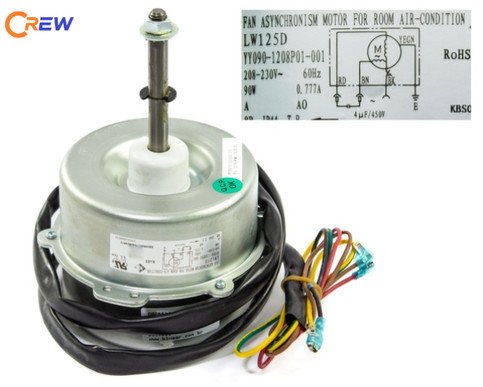

LW125D – YY090 90W 230V

 Technical specifications:

• Mechanical type: Single-phase alternating current (AC Motor) fan motor (Single Phase).
• Operating voltage: 230 volts (230V) With a standard frequency of 50/60 Hz, making it fully compatible with home and commercial electricity grids in the Middle East and Europe.
• Electrical power: 90 watts (90W)This is an excellent ability that gives the engine strong torque capable of rotating the blades of large centrifugal fans.
• Type of electrical operation: Permanent capacitor motor (Permanent Split Capacitor – PSC), which needs an external operating capacitor (Capacitor) to adjust the starting torque and regulate the rotation.
• Internal protection: Equipped with built-in thermal protection that automatically disconnects the feed from the engine if its temperature rises above the safe limit to avoid burning of the copper coils.
• البنية الهيكلية: Durable, locked metal housing to protect against dust penetration and high humidity, equipped with a metal rotating shaft (Shaft) equipped to stabilize the fan.

 common use

• Heat dissipation in outdoor air conditioner units: The most common use of this 90-watt motor is to operate the condenser fan in the outdoor units of medium and large capacity air conditioners (split and cabinet) (for example, a capacity of 18,000 to 24,000 thermal units), where it expels heat from the condensing radiator to the outside.
• Commercial cooling systems: It is used in the maintenance of condensing units for small refrigeration and freezing rooms, and large commercial display refrigerators in supermarkets.
• Industrial ejection and ventilation fans: It is used in the manufacture and maintenance of some mechanical ventilation hoods and fans (Exhaust Fans) used in commercial kitchens, warehouses, and light factories to renew air.
