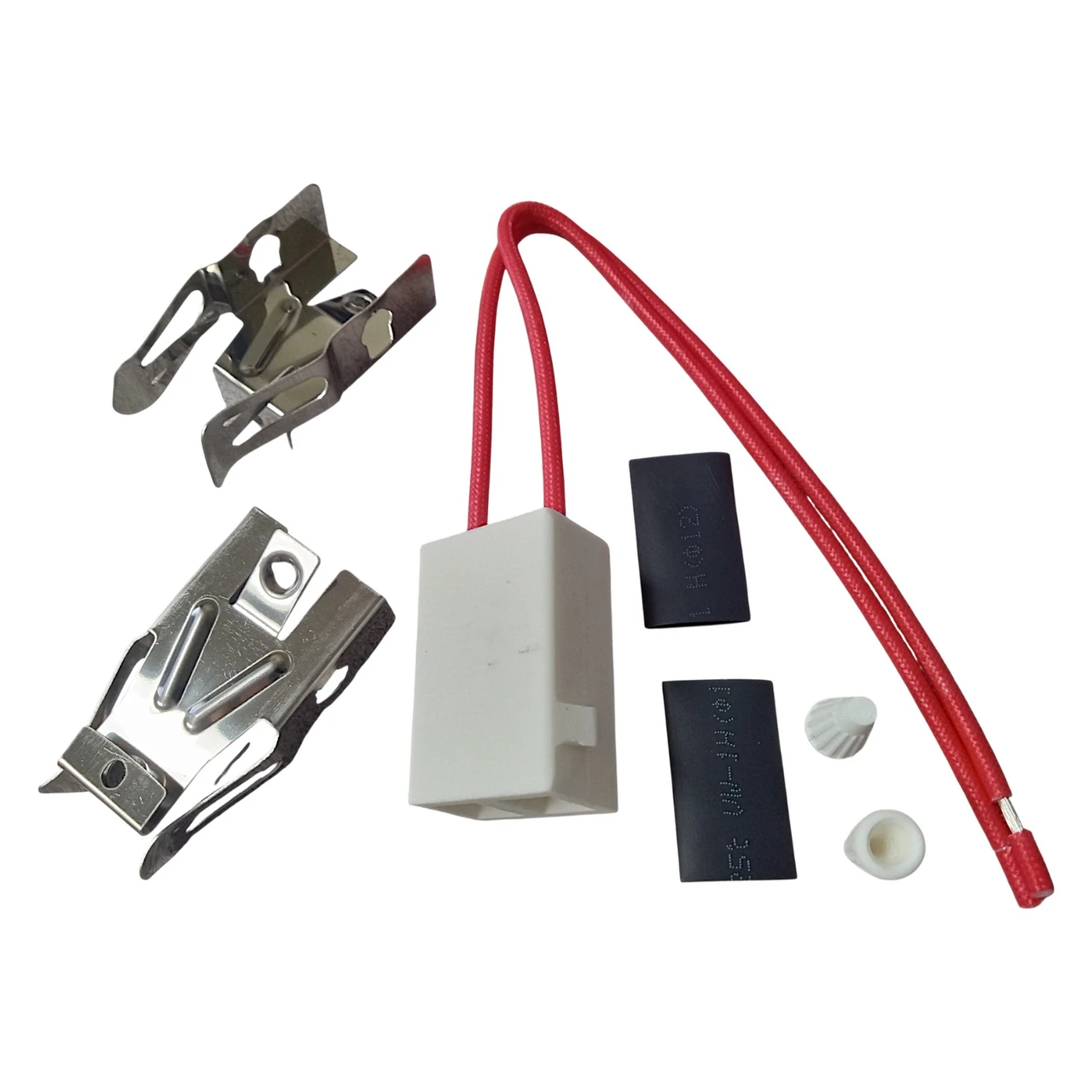

RR117C–UNIVERSAL RANGE BLOCK

Technical specifications:

• Part type: Heater Connection Socket (Universal Surface Element Receptacle).

• Technical function: provide electrical connection and install the "legs" of the eye heater (Surface Element) in the stove body. This socket ensures that high current (ampere) is safely transmitted from the internal wires to the heating coil.

• Material: ultra-high heat resistant porcelain (ceramic) housing, with brass inner metal clips designed to ensure a strong connection and prevent electrical resistance.

• Compatibility: It is considered a model RR117C globally" (Universal), which means it is designed to serve as a compatible alternative to a very wide range of stove brands (such as Whirlpool, GE, Kenmore, Maytag) that use a "direct" delivery system (Plug-in).

How to use and maintain

1. When should I replace?

• Signs of damage: any blackening (charring), melting of the ceramic material, or corrosion of the metal clamps inside the holes.

• Heater looseness: If the heater tilts or does not stay in place, it means that the metal clamps inside the socket have lost their flexibility (expansion), causing poor conductivity and electrical spark (Arcing).

• Frequent malfunctions: if the heater is not working even though its cord is intact, the fault is often a loss of contact inside this socket.

2. Installation instructions:

• Safety: completely disconnect the power about the stove before touching any part.

• Wire preparation: this model usually comes with built-in connecting wires (Lead wires). Use the "wire nuts" (Wire Nuts) that came with it, and make sure they are intended to withstand high temperatures (ceramic or metal).
